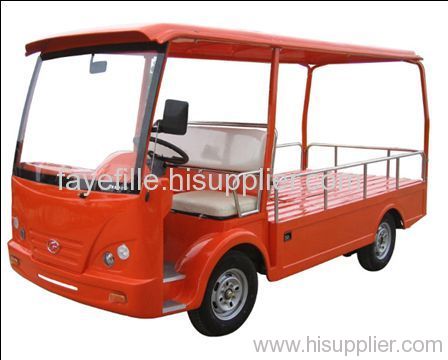

electric utility vehicle GLT3026-1TDP

1) Rated passengers (persons): 2 seats
2) Dimensions (L x W x H): 3550×1445×1990MM                                                                                                        3) Wheelbase: 1730mm                                                                                                                                                    4) Ground clearance: 180mm
5) Net weight: 1050kgs
6) Distance per charge (full load): 80±5km                                                                                                                    7) Brake distance: 5.5m
8) Max. running speed (km/h): 25km/h
9) Min. turning diameter (m): 4.5m
10) Max. climbing capability (full load): 25%
11) Body :steel / aluminum framework + fiberglass body
12) Storage battery: Trojan battery  T105,    48V/180AH                                                                                                 13) Motor: 48V/4KW/series Excitation                                                                                                                           14) Charger: 48V25A                                                                                                                                                        15) Controller : Curties 1204M-5201/48V
16) Steering system: self compensating single reduction, rack and pinion                                                             17)Front suspension: Connecting rod independent suspension                                                                             18)Rear Suspension: Intergral rear axle
19) Wheel size: 155-R12
 20) Canopy: fiberglass
21) Seats: high elasticity water-proof big seats with injected plastic armrest
22) Loadability: Qty/40' FCL: 4pcsQty/40' HQ: 4pcs                                                                                                     23) seats: leather cover high elasticity water-proof big seats with inducted plastic armrest                             24)front windshield: single tempered glass /organic glass                                                                                      25)floor: non-slip rubber flooring                                                                                                                                    26)cargo box size: 2134×1440mm
